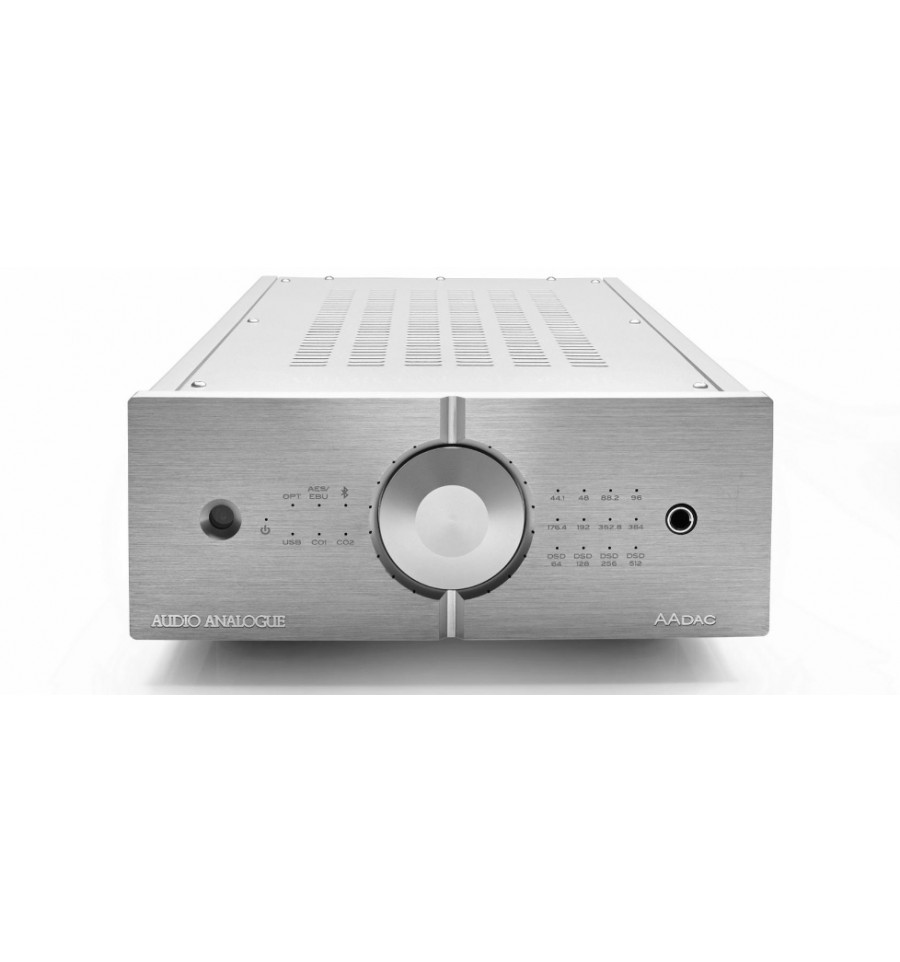

AAdac is part of the PureAA line just like AAcento and
AAphono. It is a product that perfectly fits the
philosophy of Audio Analogue: its simple design
together with its extraordinary sound performance, the
great care for the finishes and in the choice of materials
and parts makes it a perfect match for your digital
sources.
AAdac has a wide variety of functions and entering the
settings you can adjust the intensity of the LEDs,
change the channel balance, select one of seven
different digital filters and set it in preamp mode.
Technical
Description
High performance D/A converter up to 32bit/768Khz using Sabre ES9038. Amanero USB converter up to 32bit/384khz. Native DSD up to 512. 7 different digital filters.

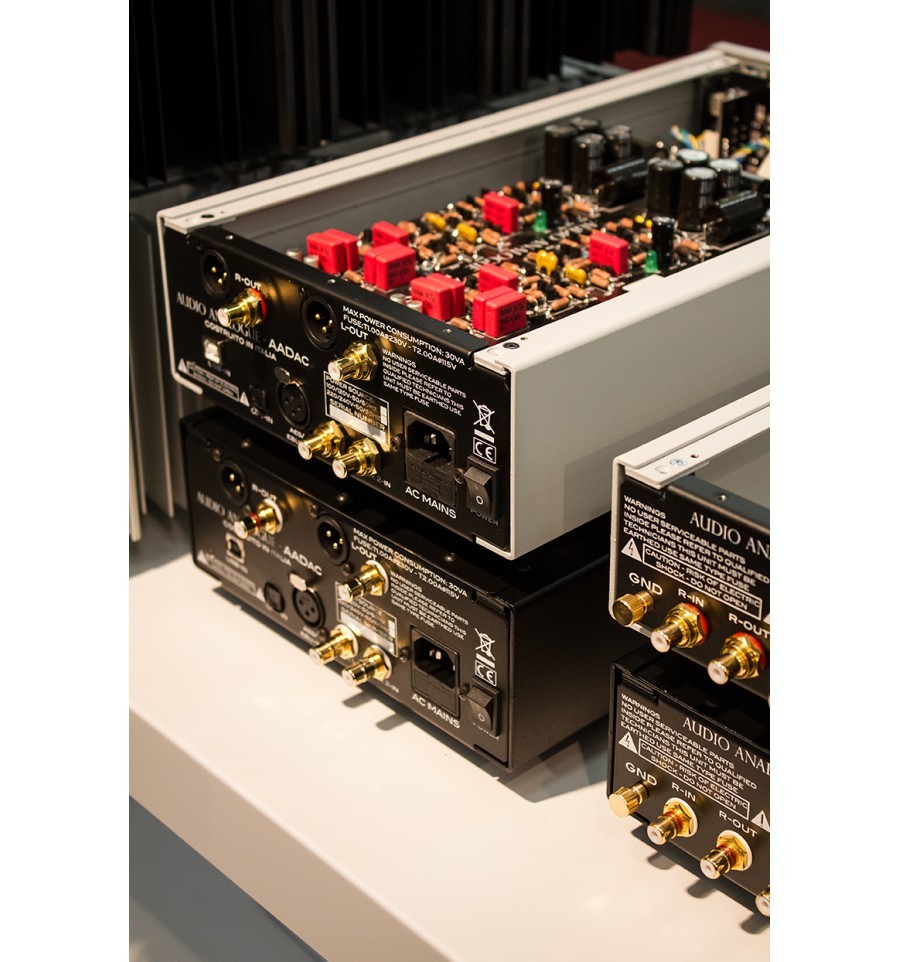

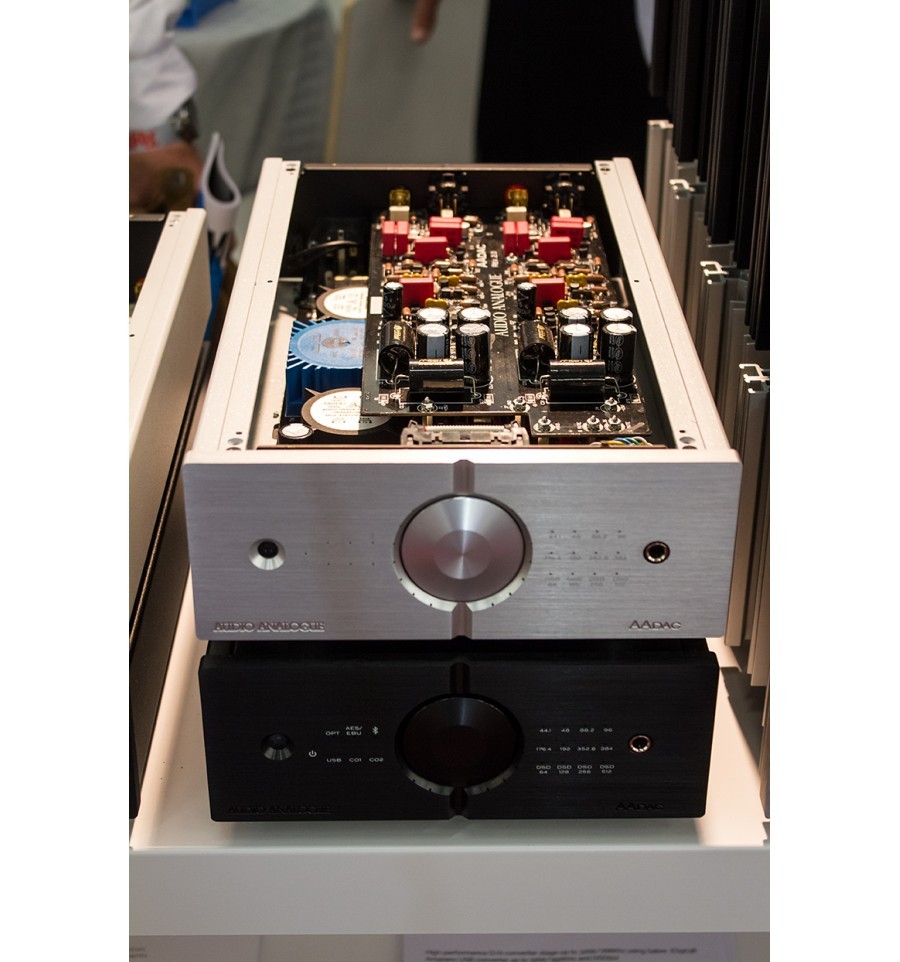

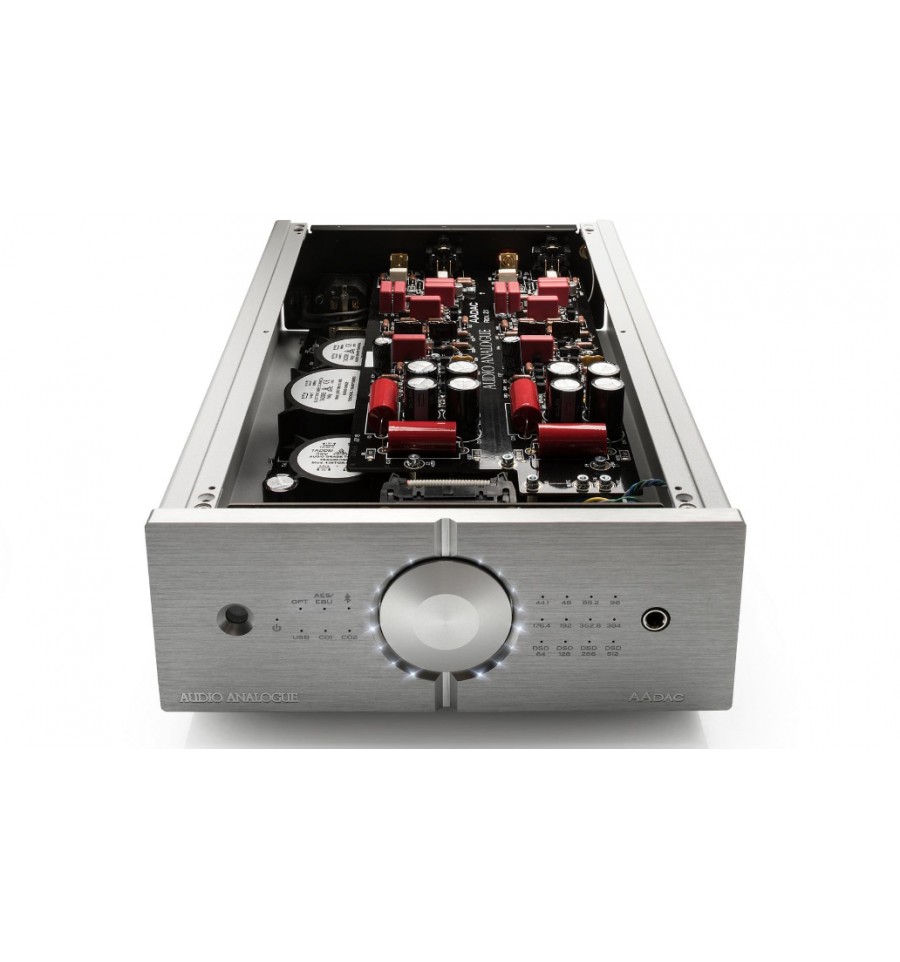

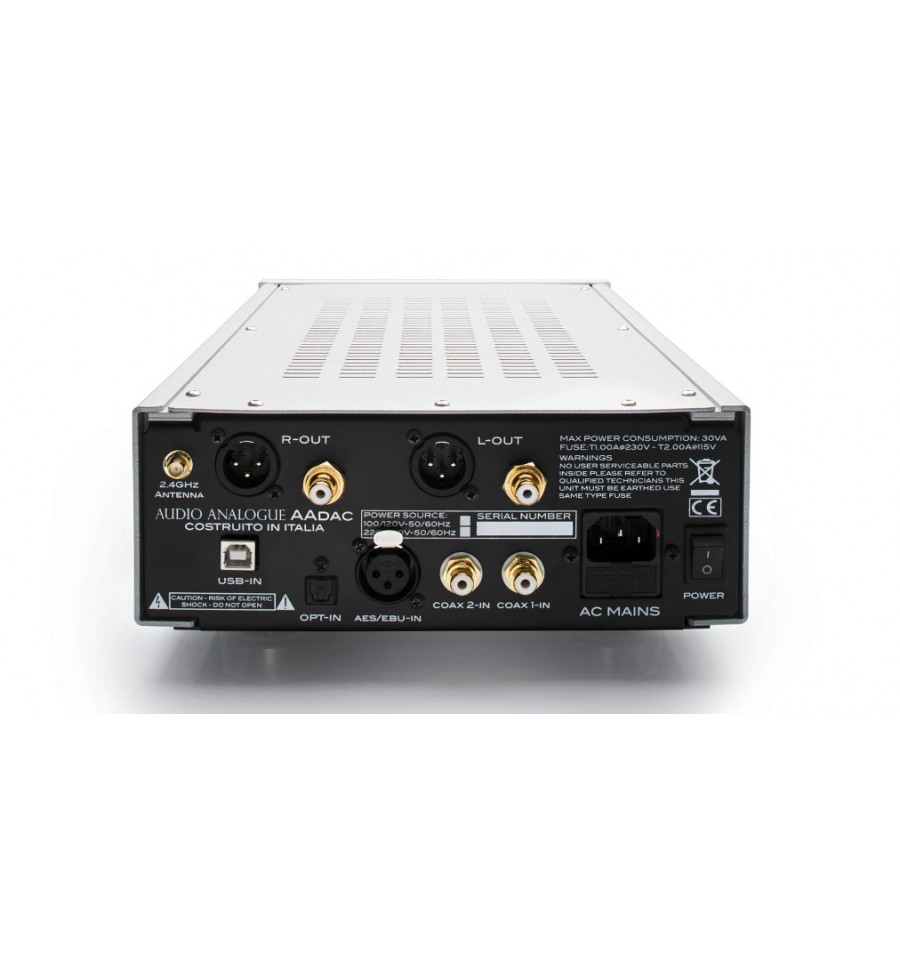

SPDIF, Toslink, AES/EBU digital inputs. High quality Bluetooth aptX® audio wireless input (optional). Separate boards for each stage. Separate power supplies dedicated to digital and analog sections.
Fully balanced output stage with audiograde discrete components to perfectly support ultra-low noise and very low distortion digital stage.
Drivers to use AAdac connected to a Windows PC can be downloaded at the following link: http://amanero.com/drivers.htm. No MAC driver is required. On request, it can be supplied with SW compatible with Linux based devices.

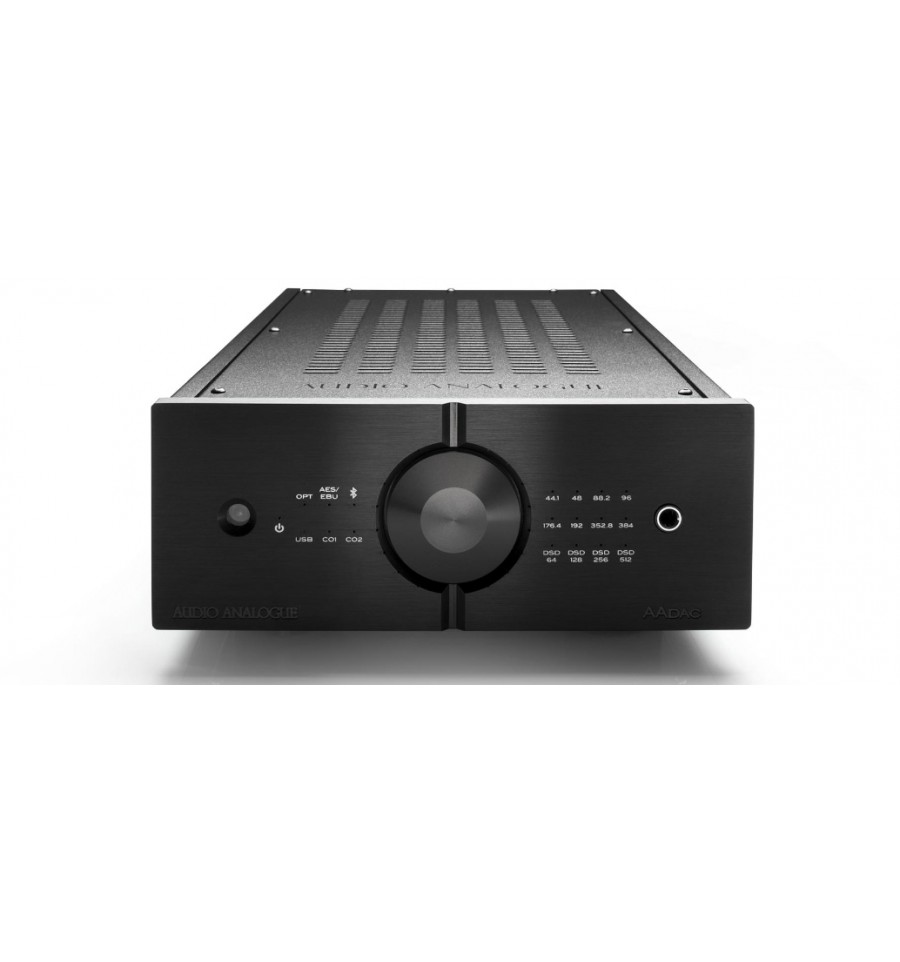

Equipped with a solid aluminum remote control, it is available in natural aluminum or satin black.
Technical
Specifications
Channels - 2
Output level - 2.9 µV (22 Hz ÷ 20 kHz )
Output level (a weighted) - 2.1 µV
Balanced output voltage - 1kHz/0dB 3.35 VRMS
Unbalanced output voltage - 1kHz/0dB 3.35 VRMS
Dynamic range (A weight) - 124 dB
THD+N - 1dB, 1kHz, FS = 48 kHz -108 dB
ENOB - 17.65 BIT
Standby power consumption - 230VAC 0.5W
Dimensions - HxWxD 100x220x390 mm
Weight - 5.5 Kg
