Merason Reuss Expand

Merason Reuss

Merason Merason

Ny

Ny, rykande het och fantastisk ljudkvalité för pengarna. Slås endast av storebror Dac1 mkII.

- Balanserade utgångar + obalanserade.

- Ingen fjärkontroll, hörlursuttag eller liknande. Denna dac gör en sak endast och den gör det otroligt bra!

- Måste höras. Ingen överdrift.

Mer detaljer

57 500 kr

inkl.

De tre tydligaste intrycken jag kan säga är - skärpa, tydlighet och värme.
Allting får en kropp, och allt hörs väldigt tydligt och nyanserat, samtidigt som scenen sträcker sig långt utanför högtalarnas räckvidd. Men det mest slående är nog hur väl musiken hålls ihop. Man sitter inte och lyssnar på enstaka "ljud" eller effekter. Det Reuss gör är att väva ihop allt till en helhet, och den gör det med fenomenal fingertoppskänsla.

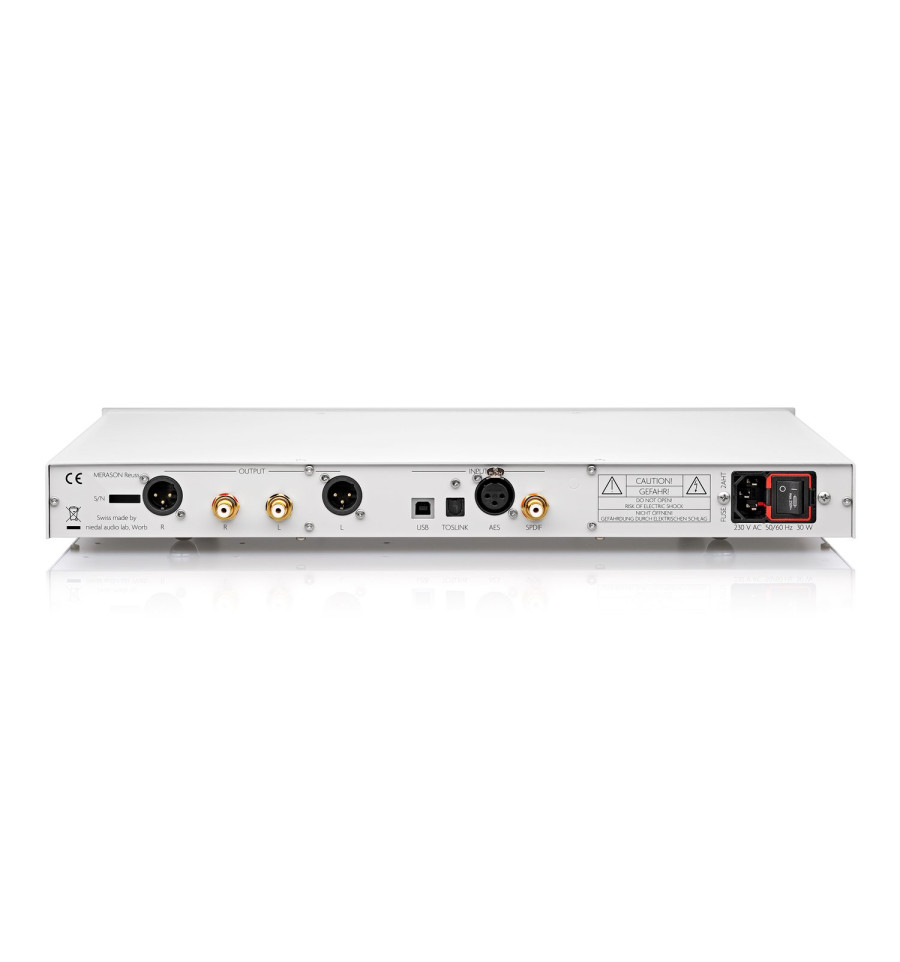

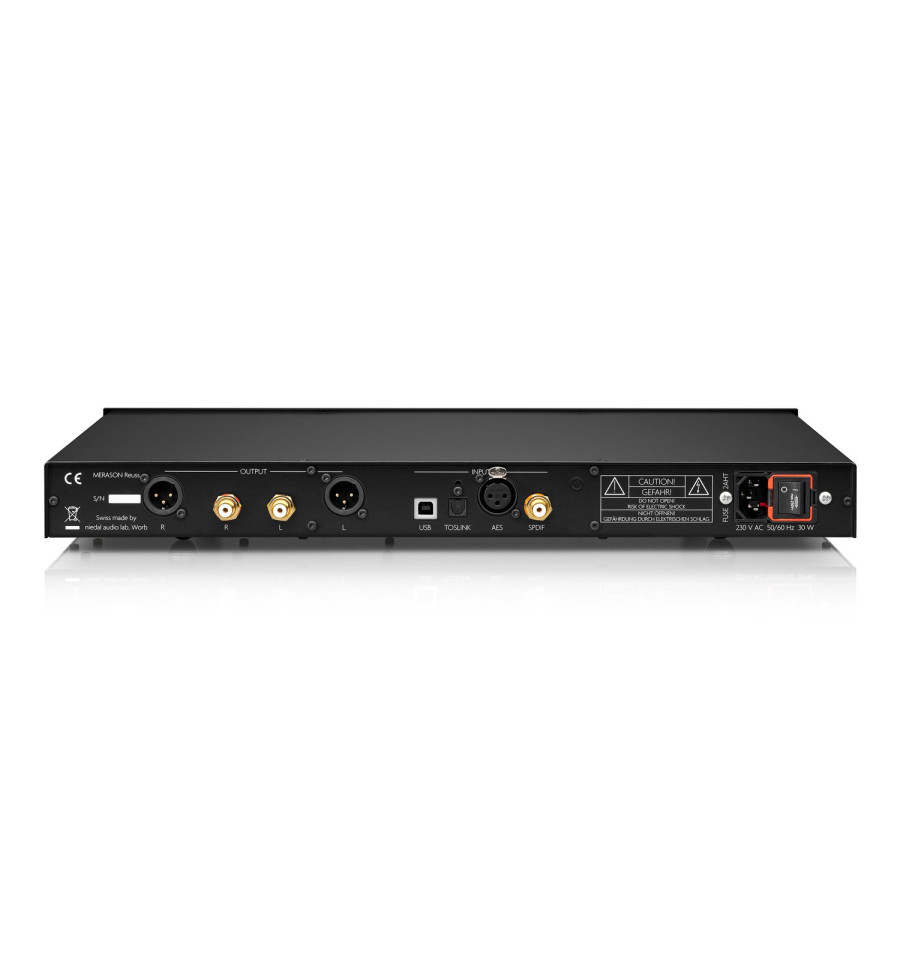

Input signal processing: The Reuss has one USB, one RCA, one Toslink and one AES input. The USB input is based on Amanero technology and ensures a low-jitter music signal thanks to two precise oscillators, which is then galvanically isolated by capacitive isolator components. The signals arriving at the other inputs are also galvanically isolated and de-jittered by means of transformers and capacitors. This guarantees that no external interference can affect the sensitive signal.

Digital-to-analog conversion: The task of digital-to-analog conversion is performed by two 1794A converter modules from Burr Brown. For a 5 dB improvement in dynamic range, each channel has its own device. The analog current signal is elaborately converted into a voltage signal in a discrete setup, which is buffered in Class A technology and routed to the output. The Reuss is fully balanced, i.e. a total of four independent channels are implemented from the two converter modules to the output.

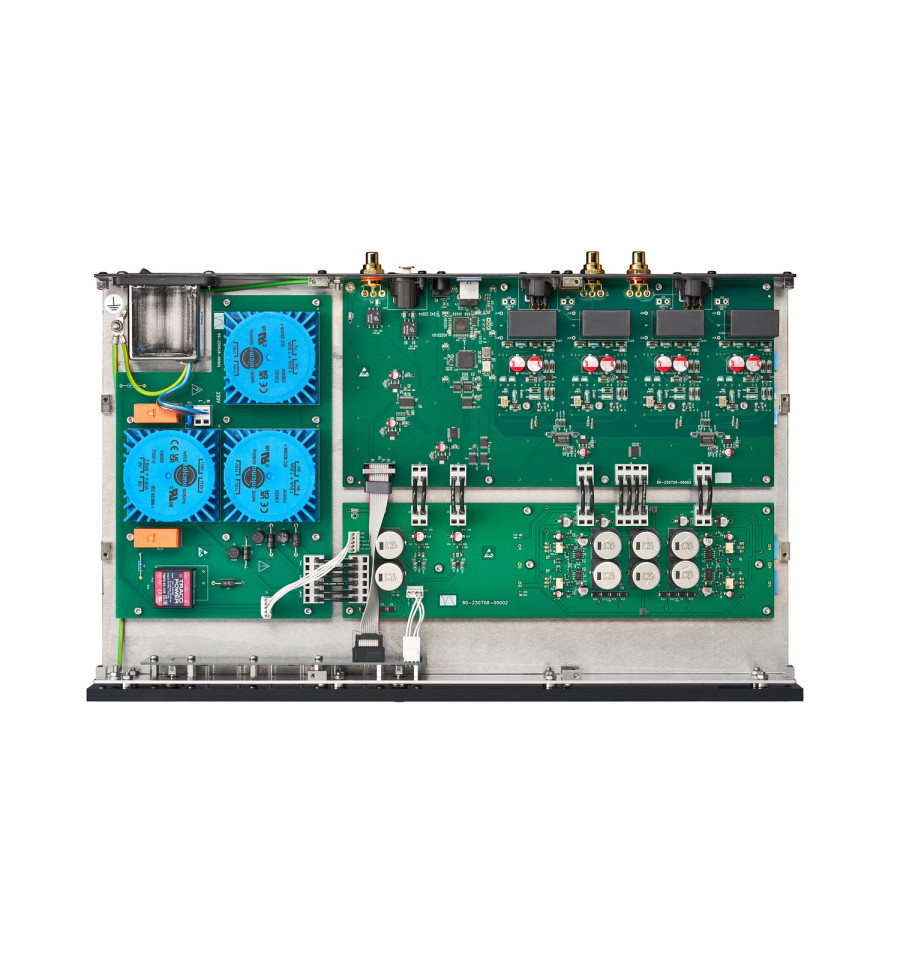

Power supply: Each functional unit has its own power supply, and in total there are twelve of them. Two output channels each are supplied by a separate linear supply with an oversized transformer.

Structure: The sound influence of components and circuit variants as well as various layouts were thoroughly tested in countless sessions by experienced listeners. This applies in particular to capacitors, voltage regulators, converter components, transistors, resistors, signal processing, I/V converters and output stages.

Made in Switzerland: The manufacture of the housing, the front panel and the control knobs and the printing, component placement, assembly, commissioning and inspection are carried out exclusively in Switzerland.

SPECIFICATIONS

Output: max. 3 V RMS (balanced), max. 1.5 V RMS (unbalanced)
Frequency Response: 20 Hz to 20 kHz +/- 0.5 dB
THD+N: < 0.015 %
SNR: > 115 dB
DAC: twice BurrBrown 1794A, discrete I/V stage
Power Supply: 230 V or 115V (one of them) AC / 50 to 60 Hz, 30 W.

OPERATION

Ambient temperature 10°C to 30°C, 50°F to 86°F
Humidity max. 80 %, non-condensing
During operation, the device heats up by approx. 20 K compared to the ambient temperature.
