Dac med streaming.
Magisk musikpresentation.
Finns i butik för demo.
Varning: Sista varan i lager!
Tillgänglig efter datum:
With digital now being the primary source for many audio enthusiasts, we created the RD-101 DAC to accompany the amps in our Reference Series. Taking advantage of the technology in our award winning SCD-025 Mk.II, our engineers have managed to squeeze the magic from that unit into a smaller chassis without compromising on quality.
The RD-101 Mk.II utilises the incredible Sabre ES9028PRO 32-bit HyperStream II DAC chip. With up to 140dB DNR and -122dB THD+N for unmatched audio clarity, unprecedented dynamic range and ultra-low distortion.
Our ultra low noise power supply regulator offers a vast array of steps to support the DACs potential performance and with a true balanced, discrete bipolar analog stage using zero global feedback with ultra high bandwidth, the RD-101 Mk.II is unparalleled at this price point.

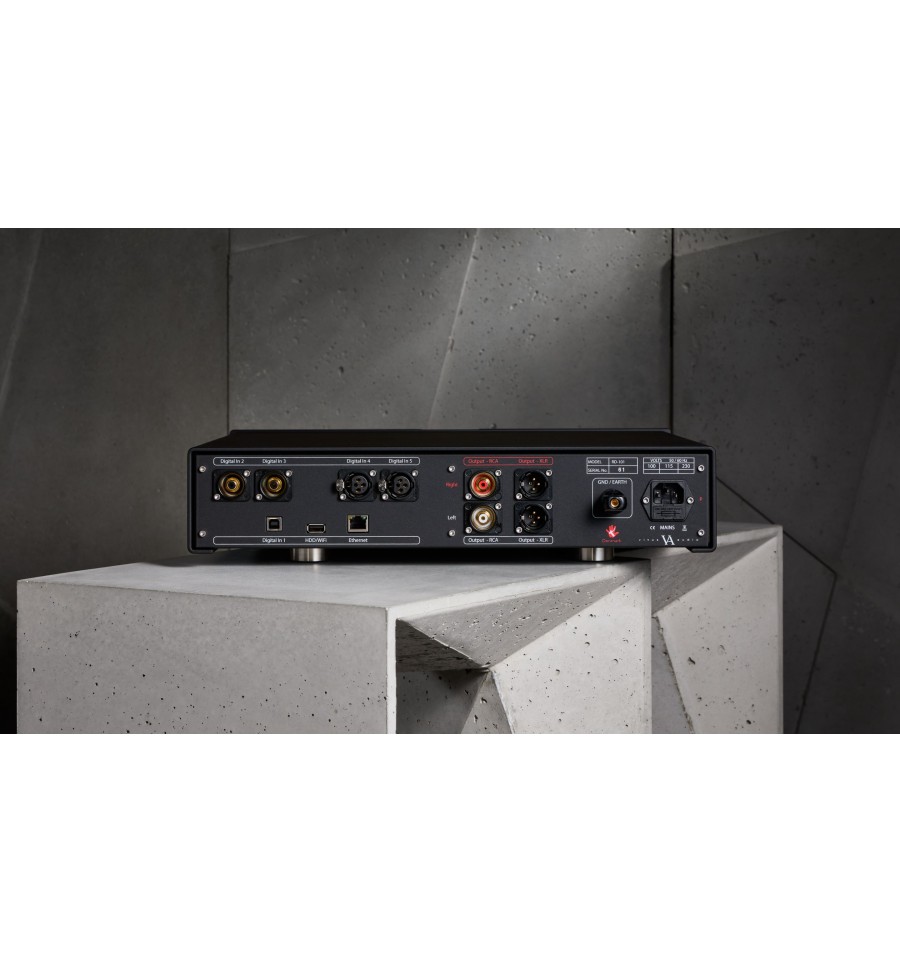

Featuring 5 digital inputs and a dedicated RJ45 streamer input, all your digital sources are comfortably accommodated by the RD-101. The USB audio input supports NativeDSD up to 128 and PCM up to 384kHz / 32 bit resolution.
The streaming module supports the complete set of network audio protocols including DLNA/UPnP, Airplay and Spotify Connect.

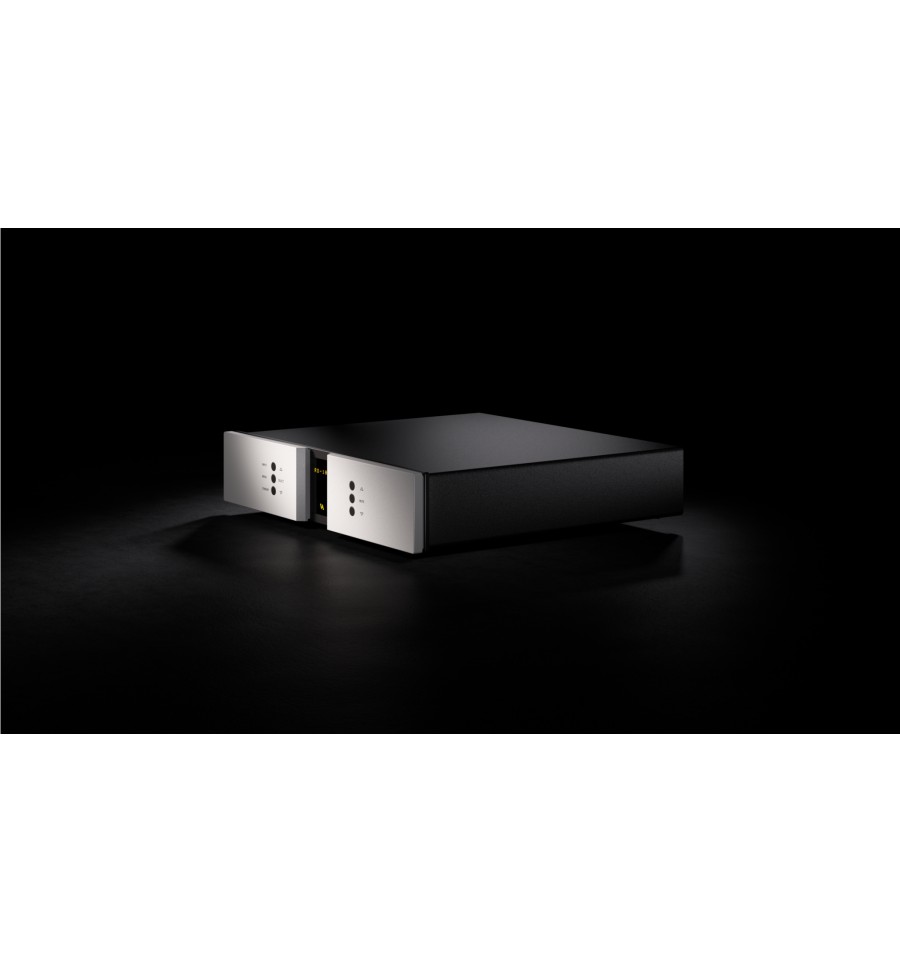

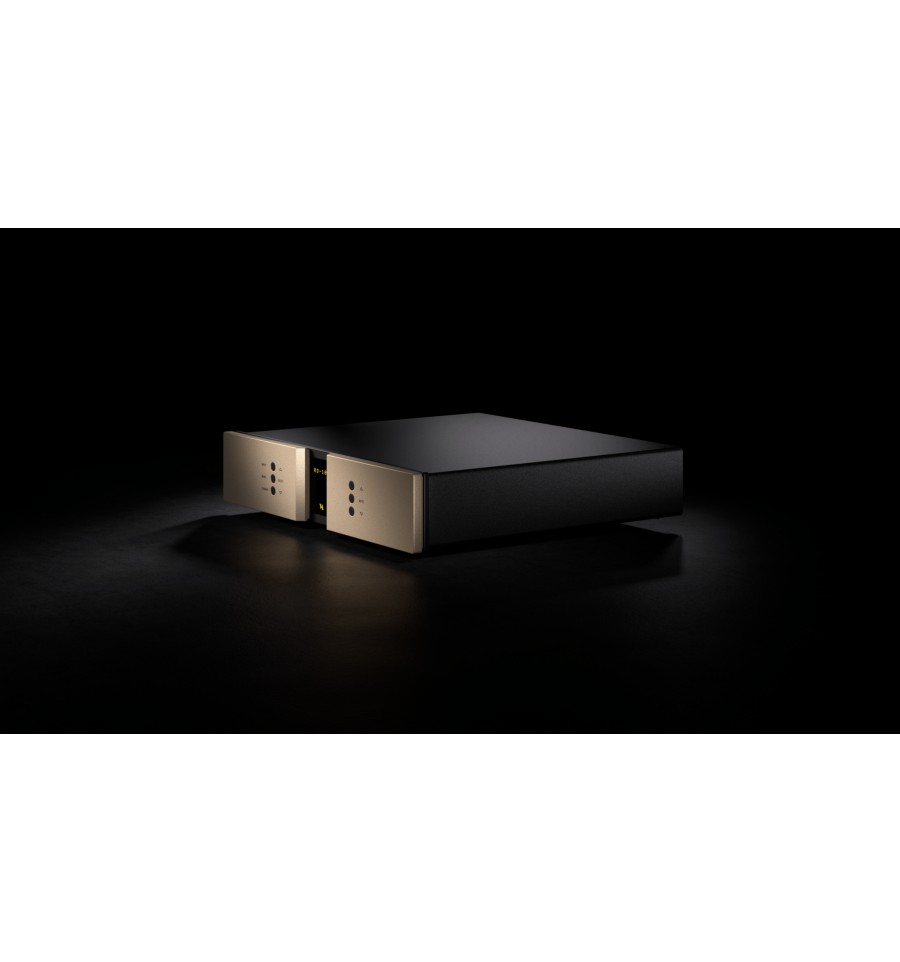

The RD-101 Mk.II comes in Pure White, Jet Black or Warm Silver as standard. Titanium Orange, Dark Champagne and Titanium Grey are our most popular unique finishes.
| OUTPUT | XLR ANALOGUE | RCA ANALOGUE |
|---|---|---|
| Available | 1 (L+R) | 1 (L+R) |
| Impedance | 75Ω | 75Ω |
| Frequency response | +800kHz | +800kHz |
| Signal to noise ratio | >110dB @ 1kHz | >110dB @ 1kHz |
| THD + noise | <0.01% | <0.01% |
| DAC | |
|---|---|
| Master clock | 24.576 MHz +/- 5ppm |
| DAC | ES9028PRO |
| DIGITAL AUDIO INPUT | USB | AES/EBU | S/PDIF | STREAMER | |
|---|---|---|---|---|---|
| Available | 1x USB B | 2x XLR | 2x RCA | 1x RJ45 | |
| Impedance | 110Ω | 75Ω | |||
| Sample rate | 384 kHz + DSD128 | 192kHz | 192kHz | 192kHz + DSD 64 | |
| Resolution | 24bit | 24bit | 24bit | 24bit |
| POWER CONSUMPTION | |
|---|---|
| Standby | <1W |
| Operation | 25W |
| DIMENSIONS | |
|---|---|
| Height | 103mm including feet |
| Width | 435mm |
| Depth | 396mm / 431mm with binding post |
| Weight | 12kg |
| Material | Aluminium for body parts |
