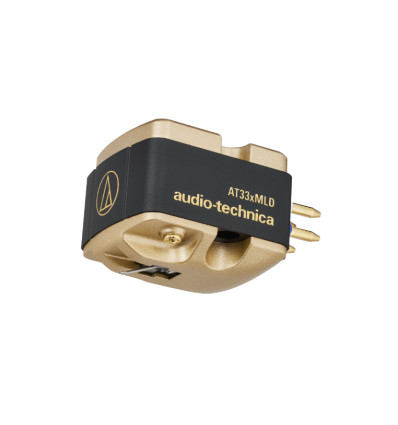

Audio Technica AT33xMLD

Skick: Ny

Dual Moving Coil Stereo Cartridge

Mer information

The latest update to the venerable AT33 Series – the first extensive overhaul in years – brings new warmth and fullness to your favorite music. Incorporating technological and material improvements, including our first use of die-cast zinc at the base of the cartridge to ward off unwanted resonance and improve expressiveness in the mid to low frequencies, the AT33x Series cartridges let you hear the finest details across the audio spectrum.

Featuring a microlinear nude stylus set to a duralumin tapered pipe cantilever, the AT33xMLD delivers warm, detailed sound, making it an excellent choice for rock and jazz records. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy, lowering the dynamic compliance slightly for more substantial audio, particularly in the mid-low range.

The cartridge’s composite body, made of die-cast zinc, aluminum, and high-rigidity polymer, reduces and disperses resonance across the entire body, resulting in balanced, natural sound reproduction that doesn’t favor particular frequencies. The AT33x dual moving coil cartridge design features independent left- and right-channel PCOCC (Pure Copper by Ohno Continuous Casting) coils for outstanding channel separation and pure, smooth signal transmission. A neodymium magnet and permendur yoke create a strong magnetic field that maximizes power generation efficiency, resulting in responsive, high-resolution analog playback.

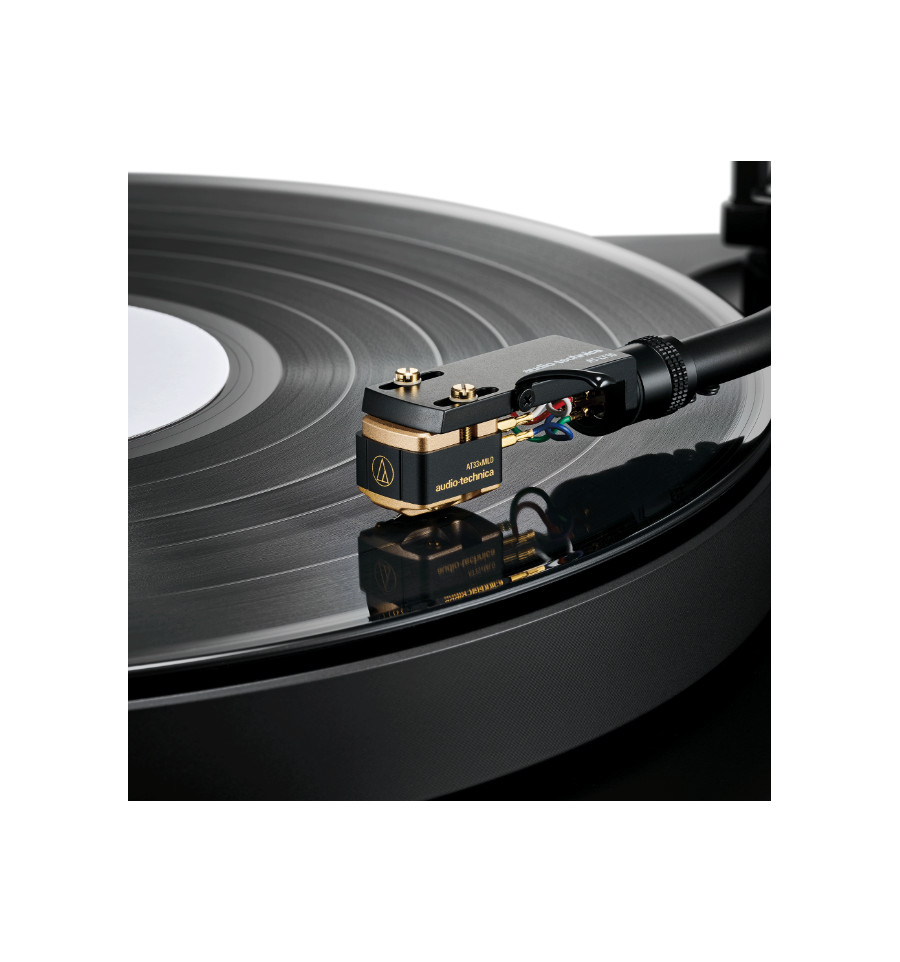

Like all AT33x Series cartridges, the body of the AT33xMLD includes threaded holes for easy mounting (just two screws required). These threaded holes are especially useful when mounting the cartridge to an integrated tonearm.

Please Note: AT33xMLD’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Newly Developed Suspension System

Material Difference

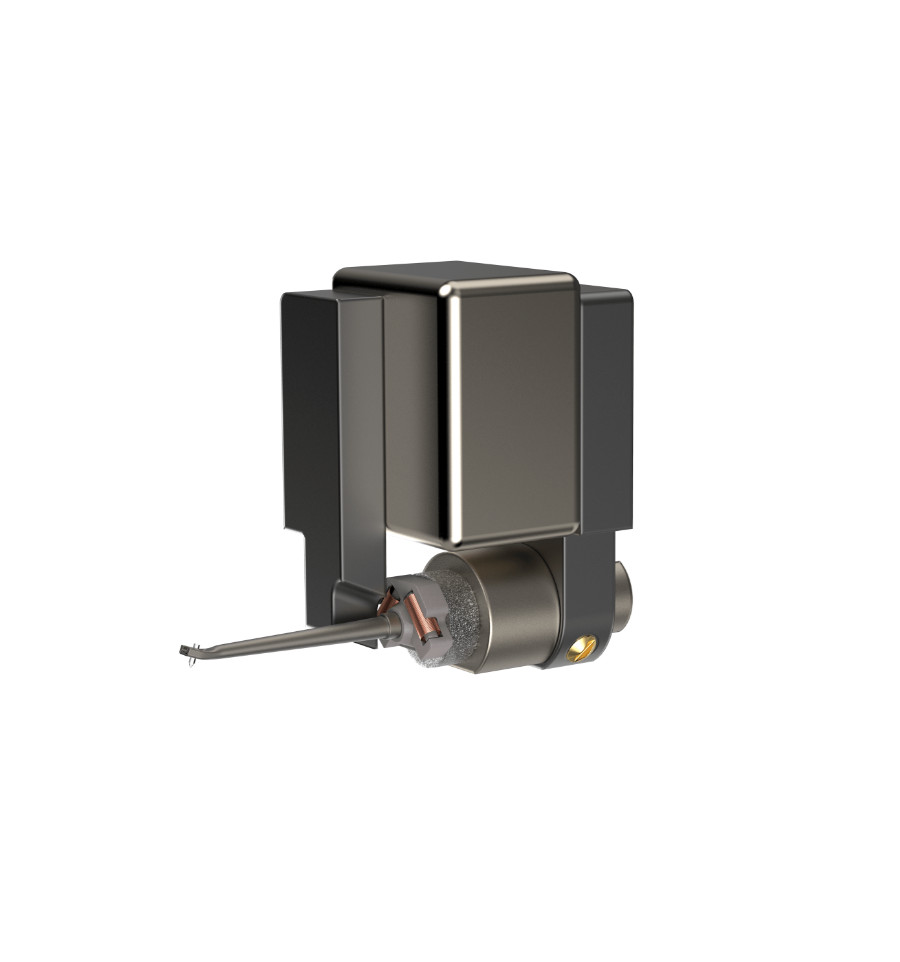

The AT33xMLD’s rigid duralumin pipe cantilever, which tapers toward the microlinear stylus tip for improved response, is linked with a firm suspension mechanism, slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilever’s fulcrum to ensure pure signal transmission for each channel.

Sound Body

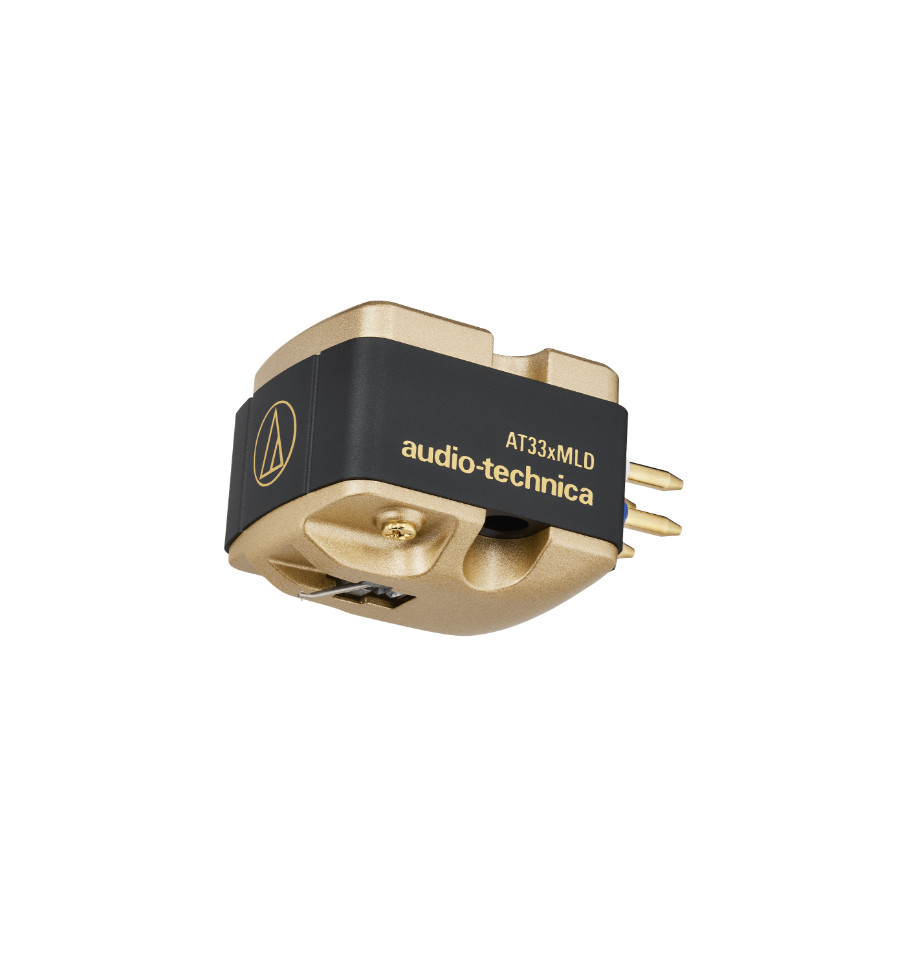

Each AT33x Series cartridge body is constructed of three distinct materials – die-cast zinc, aluminum, and high-rigidity polymer – optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.

Specifications

Cartridge & Stylus
Frequency Response	20 to 42,000 Hz
Channel Separation	27 dB (1 kHz)
Vertical Tracking Force	19°
Tracking Force	1.8 to 2.2 g (2.0 g standard)
Recommended Load Impedance	≥ 100 ohms (when head amplifier connected)
Coil Impedance	12 ohms (1 kHz)
DC Resistance	12 ohms
Coil Inductance	26 μH (1 kHz)
Output Voltage	0.4 mV (1 kHz, 5 cm/sec.)
Output Balance	1.0 dB (1 kHz)
Stylus Shape	Nude Microlinear
Cantilever	Duralumin tapered pipe
Static Compliance	21 × 10-6 cm/dyne
Dynamic Compliance	6 × 10-6 cm/dyne (100 Hz)
Dimensions	16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
Accessories Included	Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); Protector
Threaded Hole	M2.6 × 2
Stylus Curvature Radius	2.2 × 0.12 mil
Type	MC
Weight	10.1 g (0.36 oz)
Notes	* Washers × 2 and screws (8.0 mm (0.31”)) × 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice.
